Before we jump in, you might have a specific model in mind. It could be a Chamberlain, LiftMaster, or any other brand—each with its quirks and features. We’ll tackle some common problems that can pop up, no matter the brand. You’ll learn how to identify the issues, whether it’s a faulty connection, a misaligned sensor, or something else entirely boorishly simple. So, let’s get started!
What Are Garage Door Safety Sensors?
Garage door safety sensors are small devices usually located at the base of the garage door, one on each side. Their job? To prevent the door from closing if something—or someone—is in the way. Picture this: you’re backing out of the garage, and your kid runs behind the door at the last second. Those sensors will pick up movement and signal the door to stop and reverse—pretty neat, right?
These sensors often use infrared beams to detect obstacles. If the beam is interrupted, the door halts its descent. If they malfunction, you might notice your garage door behaving strangely, or worse—refusing to close at all.
Understanding how these sensors work is the first step to troubleshooting any issues. If you know what they’re supposed to do, it’s easier to spot when something is off.

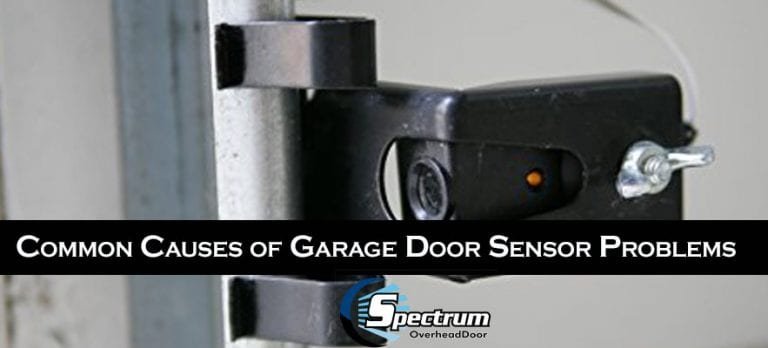

Common Safety Sensor Problems and Their Causes
Overhead door safety sensors can run into several common issues. Recognizing these will save you time and frustration. Let’s break down some of the frequent problems:
- Misalignment: This happens when the sensors become tilted or out of position. Even a tiny shift can block the infrared beam, causing the door to malfunction.
- Obstructions: Sometimes dirt, spider webs, or even snow can block the sensors’ view. You might not see it at first, but a simple cleaning can solve the problem.
- Faulty Wiring: Wires can deteriorate over time or get damaged. If you notice your sensors flickering or not responding at all, this could be the culprit.
- Power Issues: Low battery power in your remote or control panel can also lead to sensor problems. Without the right power, the signals may fail to sync properly.
Knowing these common issues can help you narrow down the root cause quickly.
How to Check for Misalignment
Misalignment is a major reason why safety sensors fail. Luckily, it’s one of the easiest problems to fix! Here’s how to check if your sensors are aligned correctly:
1. Look at the Sensors: Stand outside your garage door and visually inspect both sensors. They should face each other and be at the same height.
2. Adjust if Necessary: If they look tilted or off-center, gently adjust them back into place. You might need a small screwdriver to tighten them up.
3. Test the Sensors: Once adjusted, try closing your garage door again. If it shuts smoothly, you’ve fixed the issue!
A good visual check can often save you lots of headaches later.
Cleaning Your Safety Sensors
Dirty sensors might not seem like a big deal, but they can definitely mess up your garage door’s function. Here’s a simple way to clean them:
1. Turn Off Power: For safety, unplug the garage door opener or cut off power while you clean.
2. Wipe the Sensors: Use a soft, dry cloth to gently wipe the lens of each sensor. Avoid using harsh chemicals that could damage the surface.
3. Reconnect Power: After cleaning, plug the opener back in and test the door again.
Cleaning is something you can do in just a few minutes, and it can make a world of difference.
Addressing Faulty Wiring and Connections
If misalignment and dirt aren’t the problems, let’s talk about faulty wiring. This can be a trickier issue, but it’s not insurmountable. Here’s what to do:
1. Inspect the Wires: Look for any visible damage, fraying, or loose connections. If something looks off, that’s likely your problem.
2. Check Connections: Make sure all wires are firmly connected. Loose connections can create erratic sensor behavior.
3. Get Help if Needed: If you’re uncomfortable checking wiring yourself, it might be best to call a professional.
Remember, safety comes first! If you’re unsure about handling electrical components, never hesitate to ask for help.
Power Issues and Their Impact on Sensors
Sometimes the issue might not be with the sensors themselves but with the power supply. Low battery in your remote or garage door opener can impact overall functionality. Here’s how to troubleshoot this:
1. Check the Remote Battery: If your garage door opener uses a remote, check to see if the battery is running low. Replacing it is usually a quick fix.
2. Inspect the Garage Door Opener: If it has indicator lights, note how they are behaving. Blinking lights often indicate battery issues or a need for repairs.
3. Sync the Door Opener: If you changed the battery, make sure the remote syncs with the door opener. Usually, this involves pressing a button on the opener and the remote within a certain timeframe.
Power issues may not be the most exciting thing to handle, but they are usually easy to fix!
Preventive Measures for Safety Sensor Issues
Once you’ve resolved issues with your sensors, consider taking some preventive measures. Keeping everything in shape helps avoid headaches down the line. Here are some tips:
- Regular Cleaning: Make it a habit to clean your sensors at least once a month. This keeps dust and debris from building up.
- Routine Checks: Periodically inspect the sensors for misalignment. A simple adjustment can go a long way.
- Professional Maintenance: Consider having a professional check your garage door system annually. They can spot issues you might miss.
By taking these preventive steps, you can help prolong the life of your garage door safety sensors and ensure they work smoothly.
Troubleshooting common overhead door safety sensor issues doesn’t have to be overwhelming. By understanding how your sensors work and knowing what to look for, you can tackle these problems with confidence. Whether it’s misalignment, dirt, faulty wiring, or power issues, you can often resolve them on your own or with a bit of help.
Remember, safety sensors are there to protect you and your family. Keeping them in good working order saves you from potential hazards and ensures your garage door operates smoothly. So, the next time those sensors give you trouble, you’ll be ready. Whether you’re an eager DIYer or someone who just wants to understand the mechanism better, you’ve got the tools you need to keep your garage door safe and reliable.
