How To Install Raynor Motor Unit
When it comes to garage door openers, the Raynor motor unit is like the engine that keeps your door running smoothly. If you’re thinking about replacing or installing this unit yourself, it might seem daunting at first. But don’t worry! Imagine making a simple meal: you gather your ingredients, follow a recipe step-by-step, and before you know it, you’re feasting. That’s how this process works.

Installing a Raynor motor unit doesn’t require a degree in engineering—just a bit of patience and attention. Once you have your tools ready and everything set up, you’ll feel accomplished when that garage door swings open at the touch of a button. Plus, knowing you can handle the installation can save you some cash, right? Let’s dive into how to do this!

Gather Your Tools and Materials

Before you start, make sure you have the right tools on hand. This is like laying out all your ingredients before cooking—you don’t want to find you’re missing something halfway through. Here’s a list of what you’ll typically need:

  • Power drill
  • Socket wrench
  • Phillips screwdriver
  • Measuring tape
  • Your new Raynor motor unit
  • Safety goggles
  • Ladder
  • Owner’s manual

A quick note about the owner’s manual: this little booklet is your best friend during the process. It contains specific instructions and diagrams that are tailored to your motor unit. Keep it handy!

Remove the Old Motor Unit

Now that you have your tools ready, it’s time to remove the old motor unit. This step is crucial and needs to be done carefully. Start by disconnecting the power supply to your garage door opener. You don’t want any unexpected surprises during the process!

Here’s how to go about it:

1. Disconnect the power: Unplug the opener or even turn off the circuit breaker to ensure there’s no electricity running.
2. Remove the old unit: Use your socket wrench to unfasten the screws holding the motor. There may also be brackets that you’ll need to unscrew.
3. Detach the opener from the door: Carefully disconnect any lift cables or brackets from the door. Make sure to support the door properly during this step.

Be patient here; rushing can lead to mistakes.

Install the New Raynor Motor Unit

Once the old unit is out, you can begin installing the new Raynor motor unit. Think of this as assembling a model: step by step, piece by piece.

1. Position the new motor: Place your Raynor motor unit in the same position as your old one. Ensure it aligns with the door’s support brackets.
2. Secure the unit: Attach it using the screws and brackets you removed earlier. Make sure everything is tightened properly—this is crucial for safety.
3. Connect the lift cables: Reattach the lift cables to the new unit according to the owner’s manual’s specifications.

Here’s the thing: if all the connections and screws look sound, you’re nearly there!

Wiring the Motor Unit

Next up is the wiring. This step can seem daunting, but it’s pretty straightforward. The goal here is to connect your motor unit to the power supply and the wall control button, allowing everything to communicate.

Connect the power wire: Follow the wires from your motor unit and attach the power wire to the corresponding connector in the outlet. Be sure you follow the manual instructions closely to avoid any issues.
Install the wall control: Mount the wall control button where you desire (usually next to the door). Connect it to the motor unit according to the wiring diagram in your manual.
Double-check connections: This is a good time to make sure all your wire connections are secure. Loose connections can lead to malfunctions down the line.

Take your time here. A small mistake might mean trouble later.

Testing the System

Now it’s time for the exciting part—testing your new Raynor motor unit! Testing is like the taste test before serving a meal. You want to make sure everything is working fine.

1. Reconnect the power: Flip the circuit breaker back on or plug the opener back in.

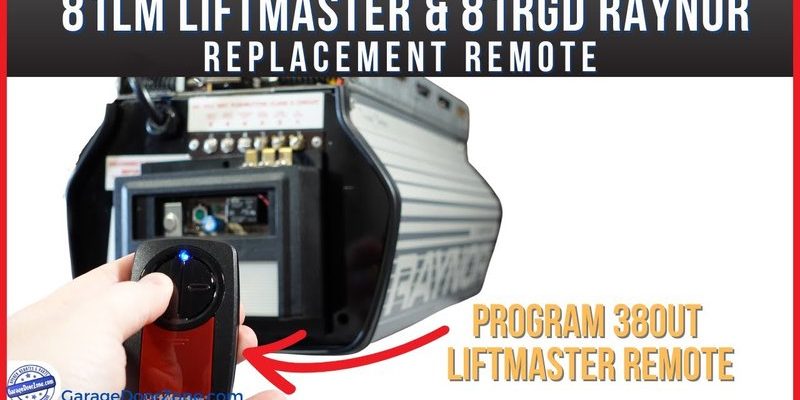

2. Test the remote: Grab your remote and see if it successfully opens and closes the door. You might need to pair the remote with the unit if it’s not operational straight away.
3. Observe for any odd sounds: Pay attention to any unusual noises during operation. If something doesn’t sound right, you may need to troubleshoot.

Remember, you can always refer back to your manual if anything seems off.

Troubleshooting Common Issues

Sometimes, things don’t go as planned—just like when you burn the toast. If your garage door isn’t functioning properly, here are some common troubleshooting tips:

Remote not working: If your remote doesn’t seem to sync with the motor unit, try replacing the battery. If that doesn’t work, you might need to reprogram the remote.
Door doesn’t open/close: Check if the garage door tracks are aligned and clear of debris. Misalignment can lead to the door getting stuck.
Weird noises: If the new motor unit is making grinding or squeaking sounds, double-check all screws and cable connections.

Many issues can often be solved with a bit of patience and rechecking steps.

Regular Maintenance for Longevity

After you’ve successfully installed your Raynor motor unit, don’t forget about maintenance. Keeping your garage door in top shape is essential to prolong its life, just like regular oil changes for a car.

Lubricate moving parts: Every now and then, apply lubricant to the hinges and rollers. This prevents rust and ensures smooth operations.
Check the balance: Periodically test if your door is balanced. An unbalanced door can wear out the motor unit faster.
Examine wiring and connections: Make it a habit to inspect wires and connections for any signs of wear and tear.

Doing these checks regularly can make a world of difference.

Installing a Raynor motor unit might seem like a challenging task, but with the right preparation and steps, you can handle it with confidence. Think of it as a learning experience that empowers you to take care of your garage door. Remember, having everything ready—from tools to manuals—makes a big difference.

After following these steps, you can enjoy the convenience of opening your garage door with just a button press. Plus, you’ll feel a sense of pride knowing you did it yourself! Keep your motor unit well-maintained, and it will serve you faithfully for years to come. Happy installing!
