Imagine you’re working with a common garage door opener brand like Chamberlain or LiftMaster, known for their reliable performance. However, there are times when you might need to disable the linear circuit board, perhaps to troubleshoot a malfunction or switch to different components. Here’s the thing: while it sounds technical, following the right steps will make the process straightforward—almost like assembling IKEA furniture, but with less hassle.
Let’s break this down together.
Understanding What a Linear Circuit Board Is
Before we dive into disabling the circuit board, it’s essential to grasp what it actually is. A linear circuit board is basically the brain of many electronic devices. It controls how the device operates by allowing electrical signals to flow through its pathways, enabling functions like opening or closing garage doors and operating lights.
In simpler terms, think of it as a traffic manager. It directs the flow of electricity just like a traffic light directs cars. When functioning, it ensures everything runs smoothly. When it’s not, you might encounter problems like your garage door not responding to your remote.
Understanding how this board works can help you troubleshoot issues effectively. Sometimes, if you’re having communication problems between your remote and the garage door opener, “disabling” the linear circuit board can reset everything and clear any bugs in the system.
Safety First: Precautionary Measures
Safety should be your top priority when dealing with electronics. Imagine trying to fix your bike without a helmet. You might get lucky, but it’s best to play it safe. Start by unplugging the device you’re working on. For garage door openers, removing it from the power source may seem like a hassle, but it’s essential to prevent any electrical mishaps while you’re working on it.
Here are a few precautionary measures you should take:
- Unplug the Device: Ensure that the garage door opener is disconnected from its power source.
- Wear Protective Gear: While working, wearing safety glasses can protect your eyes from dust or debris.
- Work in a Dry Area: Avoid damp places where electrical shocks could happen. A dry workspace is crucial.
These simple steps can keep you safe while you tackle the task of disabling the linear circuit board.
Tools You’ll Need for the Job
Now that you’re equipped with the right mindset and safety precautions, let’s gather the tools you’ll need. Here’s a short list to make your journey smoother:
- Screwdriver Set: A variety of Phillips and flat-head screwdrivers will be necessary to open the device.
- Multimeter: Useful for checking electrical signals, ensuring that you’ve disconnected safely.
- Wrench: If needed, a wrench will help take off any bolts securing the garage door opener.
- Wire Cutters: In case you need to disconnect wires, these will help you do it cleanly.
Having the right tools at your fingertips means less time spent looking for what you need and more time focused on the task at hand. Always double-check that you have everything before starting.
Steps to Disable the Linear Circuit Board
Now, let’s get into the nitty-gritty of disabling your linear circuit board. Here’s a straightforward step-by-step guide to help you through:
Remember, patience is key; take your time with these steps!
Step 1: Disconnect Power
Start by unplugging your garage door opener from its power source. This is crucial for your safety. If it’s connected to a wall outlet, pull it out. If it’s hardwired, make sure to turn off the circuit breaker that provides power to the opener.
Step 2: Remove the Cover
With a screwdriver, carefully remove the outer cover of your garage door opener. Most of the time, you’ll find screws located at the back or sides. Keep those screws in a safe place; you’ll need them later.

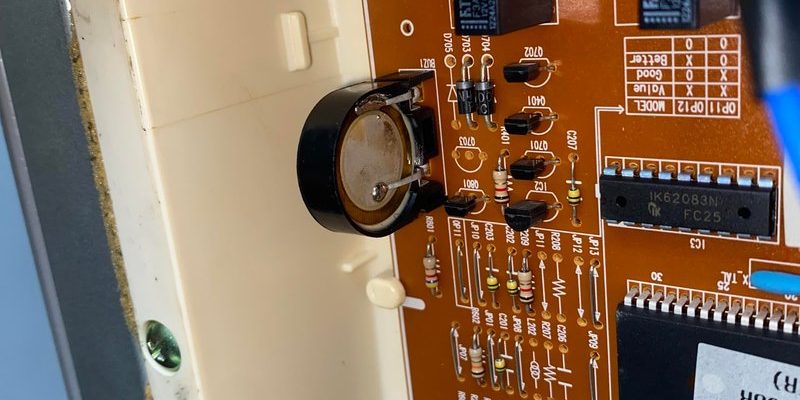

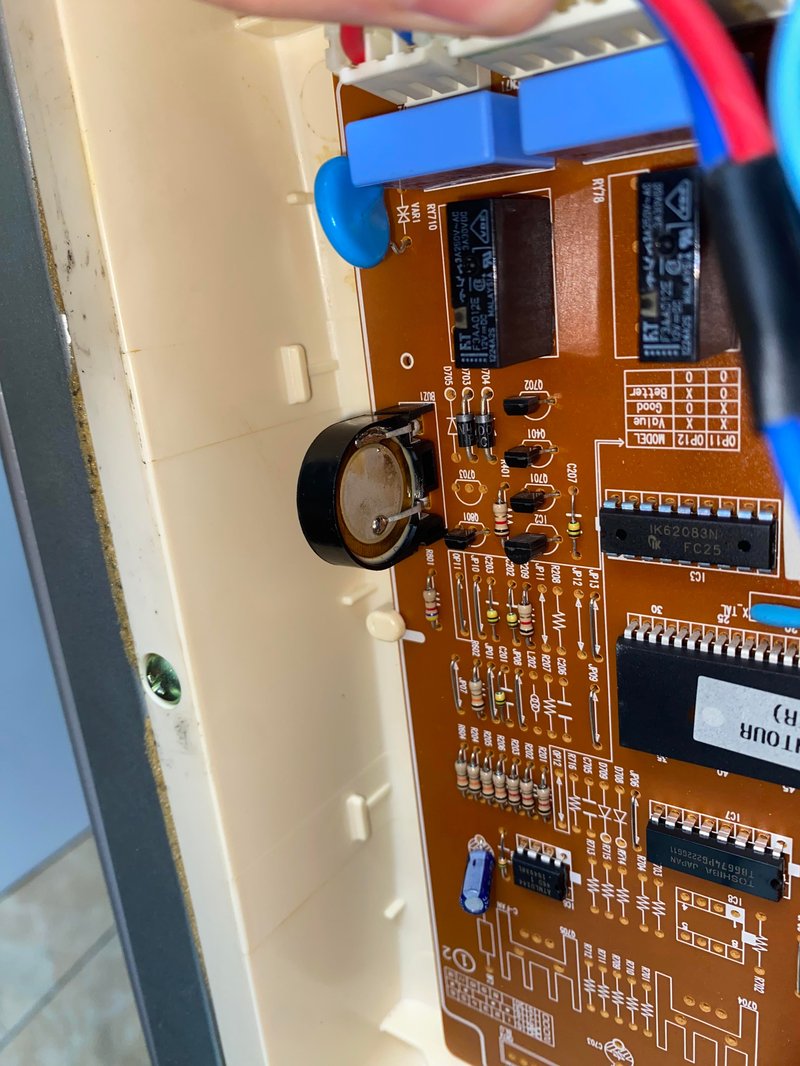

Step 3: Locate the Circuit Board
Once the cover is off, look for the linear circuit board. It should be situated near the center of the opener. You’ll see a series of wires connected to it, which are responsible for different functions, like the response to your remote commands.
Step 4: Disconnect the Wires
Carefully disconnect the wires attached to the circuit board. It’s best to note where each wire goes, maybe by taking a quick photo with your phone. This way, you’ll know how to reconnect everything later.
Step 5: Remove the Circuit Board
You should find screws securing the circuit board. Unscrew them and gently lift the board from its housing. Make sure to handle it with care; you don’t want to damage any components.
Resetting the System
After you’ve successfully disabled the linear circuit board, you might need to reset the entire garage door opener to restore functionality later. Here’s how you can do that:
1. Reassemble the Garage Door Opener: Start by putting everything back together carefully. Reverse your steps from the previous section.
2. Reconnect Power: Plug the device back in, or turn the circuit breaker back on.
3. Re-sync with Remote: If you disconnected during the process, you might need to sync your remote again. Each brand has its method, but usually, you’ll need to press and hold a button on the opener while pressing a button on the remote.
This reset can clear out glitches and ensure smooth operation.
Common Issues and Troubleshooting Tips
After disabling and re-enabling your linear circuit board, you might run into a few hiccups. Here are some common issues folks encounter:
- Remote Not Working: If your remote doesn’t seem to communicate, double-check the batteries. Fresh batteries can make a big difference!
- Board Still Not Responsive: Ensure that all wires are securely reconnected. A loose wire can cause major disruptions.
- Power Issues: If you’re still having issues, it may not be the board. Check your power source and any fuses or circuit breakers that might have blown.
Tackling these pesky problems might feel frustrating, but often, a small adjustment is all you need.
When to Seek Professional Help
Sometimes, despite your best efforts, things don’t go as planned. If you find that disabling the linear circuit board hasn’t resolved your issues, or you’re feeling unsure about any step in the process, it might be time to call in a professional.
You’ll want to consider reaching out to an expert if:
– You notice burn marks or melted parts on the circuit board.
– The garage door opener remains unresponsive despite everything you’ve tried.
– You feel uncomfortable working with electricity or electronics.
Seriously, there’s no harm in asking for help, especially when it comes to something as vital as your garage door opener.
Disabling a linear circuit board can feel like a daunting task at first, but hopefully, this guide has shed some light on the process. From understanding what it is to the steps for safely and confidently disabling it, you’ve now got the know-how to tackle it head-on.
Remember, the world of electronics isn’t as scary as it seems; it just needs a little exploration. Whether you’re troubleshooting a persistent problem or preparing to upgrade components, keep your tools handy and your safety gear close. If things don’t go right the first time, don’t sweat it. Tinker away, and enjoy the learning process!
