How To Connect Linear Wall Button
Connecting a Linear wall button to your garage door opener can feel a bit like figuring out how to assemble IKEA furniture—it seems complicated at first, but once you get the hang of it, it’s quite straightforward. Think of the wall button as your garage’s remote control. Instead of searching through your pockets for a remote, the wall button offers a permanent, convenient spot where you can open or close your garage door with just a press of a button.

In this guide, we’re going to slow it down and break it all down for you, step by step. Linear wall buttons are popular for their reliability and ease of use. This includes models that work with various garage door openers, especially those by Linear itself. Whether it’s a new installation or you’re troubleshooting an existing setup, you’ll be able to make sense of it all.

What You’ll Need Before Getting Started

Before diving into the connection process, it’s essential to gather everything you need. Having the right tools and materials on hand can save you time and frustration.

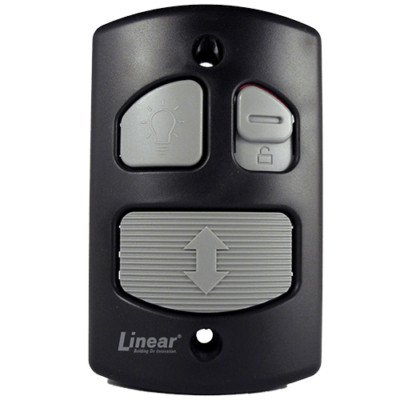

  • Linear Wall Button: Make sure you have the correct model, such as the Linear MT501 or MT550.
  • Screwdriver: Typically, a Phillips head will do the trick.
  • Wire Strippers: These help if you need to prepare the wire ends for connections.
  • Electrical Tape: Useful for securing connections.
  • Instruction Manual: Keep this handy for your specific wall button model.

Once you’ve assembled your tools, you’re ready to get started on connecting your Linear wall button. It’s just like prepping a workspace before tackling a home repair. You wouldn’t want to start a project without the right equipment, right?

Understanding the Wiring Setup

Before you get hands-on, it’s crucial to understand how the wiring works for your Linear wall button. Imagine your garage door opener as a conductor in an orchestra. Your wall button is one of many instruments that contribute to the whole performance.

Most Linear wall buttons have two wires: one for the power and the other for the signal. When you press the button, it completes a circuit, sending a signal to the garage door opener telling it to open or close.

You might see two types of connections in your garage door opener:
Terminal Connections: These are typically marked with labels like “Common,” “Up,” and “Down.”
Wireless Connections: Some models come with wireless capabilities, which may require programming but help avoid any messy wiring.

Let’s clarify one thing: always ensure your garage door opener is unplugged before you attempt any wiring. Safety first! Finishing this part correctly is crucial so that your wall button functions properly.

Steps to Connect Your Linear Wall Button

Now that you understand the wiring, let’s get into the step-by-step instructions to connect your Linear wall button to your garage door opener.

1. Turn Off Power: For safety, unplug your garage door opener.
2. Locate Terminal Connections: Open the cover of your garage door opener to find the terminal connections. This is usually at the back of the unit.
3. Connect the Wires:
– Strip about half an inch of insulation off the ends of each wire from your wall button.
– Attach one wire to the “Common” terminal and the other wire to the “Up” or “Down” terminal, based on your preference.
4. Secure Connections: Use a screwdriver to tighten the screws. Make sure each connection is secure; loose connections can lead to issues later on.
5. Reassemble and Restore Power: Once the wiring is in place, reassemble the cover of the garage door opener and plug it back in.

That’s it! These steps are like following a recipe: if you follow them carefully, you’ll have a deliciously functioning wall button in no time.

Testing Your Connection

After you’ve done all the wiring, it’s fundamental to test the connection. Think of this as the moment you bite into a cake you just baked—did it rise, or is it still flat?

– Press the linear wall button. You should hear the motor hum as the door responds. If it opens, great! If it doesn’t, don’t worry; troubleshooting is next on the list.
– If nothing happens, double-check your wiring connections. Are the wires securely fastened? If they’re loose, it’s unlikely the signal is being transmitted effectively.

Feel free to wait a bit after reconnecting the power. Sometimes, garage door openers have safety mechanisms that prevent them from working immediately after being powered up.

Troubleshooting Common Issues

If your wall button isn’t working as expected, don’t panic. It happens to the best of us. Let’s explore some common problems you might encounter when connecting the Linear wall button and how to fix them.

No Response: If the button doesn’t work at all, double-check your connections. Are the wires secure? Is the wall button functional? You could try switching it out for another one if you have it.
Intermittent Functioning: Sometimes, you might get an occasional response, but it’s not reliable. This may indicate that the wires aren’t making solid contact or that there’s need for a reset on the garage door opener.
Check the Battery: If your Linear wall button has a battery (some models do), ensure it’s charged and correctly installed. An expired battery could be the culprit behind your malfunctioning wall button.

Here’s the thing: troubleshooting can feel frustrating, but it’s all part of the process. Once you figure out the issue, you’ll feel like a garage door opener pro.

When to Call a Professional

Sometimes, despite your best efforts, things just don’t seem to connect. If you’re facing more significant issues like wiring that seems damaged or persistent failure of the button, it might be time to call in a pro.

Professional garage door technicians can quickly identify electrical problems that a standard DIY approach might overlook. Plus, they have the tools and knowledge to handle complex connections safely.

If you find yourself questioning if it’s a garage door opener issue or a wall button issue, having someone with experience can save you both time and headache. Honestly, there’s no shame in asking for help!

Connecting your Linear wall button can seem daunting, but once everything’s up and running, the convenience is totally worth it. Not having to dig around for your remote control or stepping out into the weather to open your garage is a game-changer.

Remember, it’s all about understanding the parts you’re working with—the wall button, the wiring, and the garage door itself. If something doesn’t sound or feel right, troubleshooting is just a part of the journey. Now you can enjoy the smooth functionality of your garage door at the simple touch of a button. Welcome to the world of convenience!
